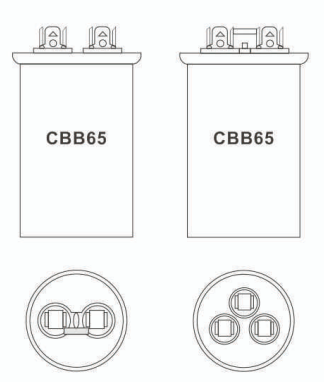

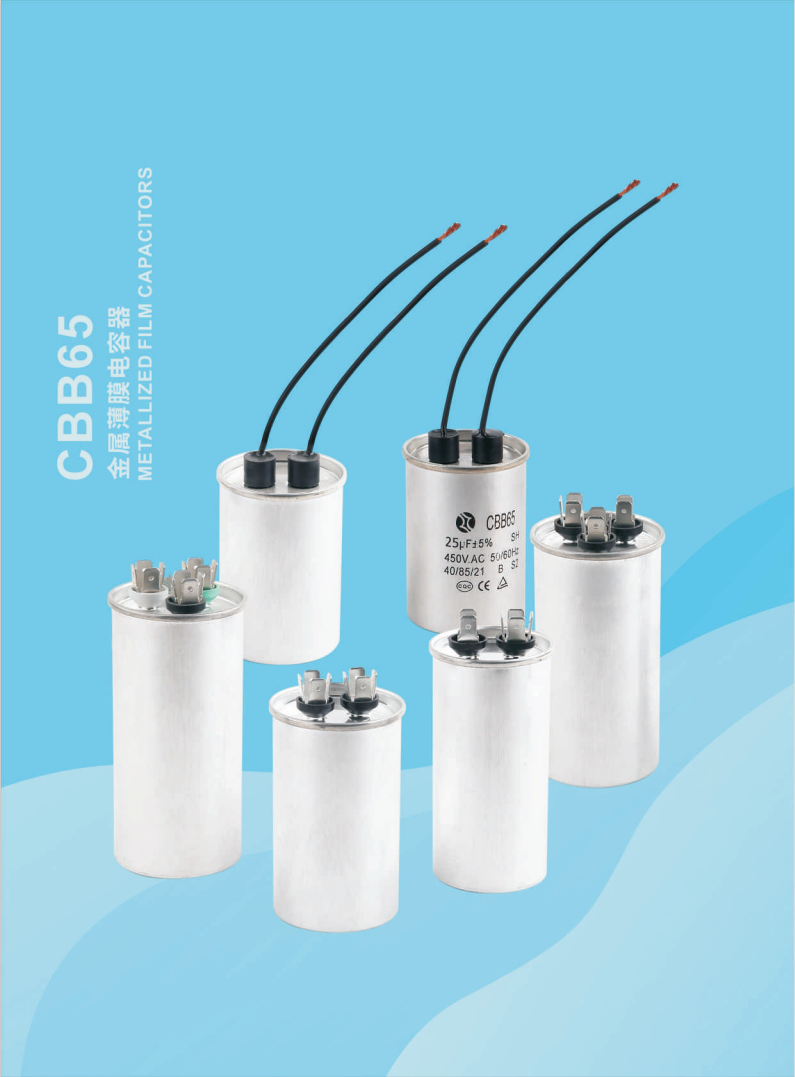

CBB65
金属薄膜电容器
METALLIZED FILM CAPACITORS
- 该产品采用纯铝外壳密封结构，在恶劣条件下不会生锈。
- 内置安全可靠防爆装置，性能卓越，安全性能高。
- 广泛应用于空调器、冰箱、电机及照明灯具等，作启动和运转。
The Characteristics &Applications of product
- The product adopt the pure aluminum shell sealing structure, it can not be rusted.
- lt is installed inside of the safe and reliable explosion proof device, so it can make the performance more remarkable and higher security.
- The product is suitable for air-conditioner, freezer, motor and lamp, contribute to start and running
技术与性能指标
| 环境温度 | -25-+85℃ |
| 额定电压 | 250V-500V |
| 容量范围 | 3-100μF |
| 容量偏差 | ±5% |
| 绝缴电阻 | T-T≥3000MΩ.μf T-C≥2000MΩ.μf |
| 损耗角正切 | tanσ≤0.002(1000Hz) |
| 耐电压:引出头间 | 2Un2S |
| 引出头与外壳间 | 2000V10S |
TECHNICAL DATA
| Operating temperature | -25-+85℃ |
| Rated voltage | 250V-500V |
| Capacitance range | 3-100μF |
| Capacitance tolerance | ±5% |
| Insulation resistance | T-T≥3000MΩ.μf T-C≥2000MΩ.μf |
| Dissipation factor | tanσ≤0.002(1000Hz) |
| Endurance voltage | 2Un2S |
| Lead head and the shell | 2000V10S |
